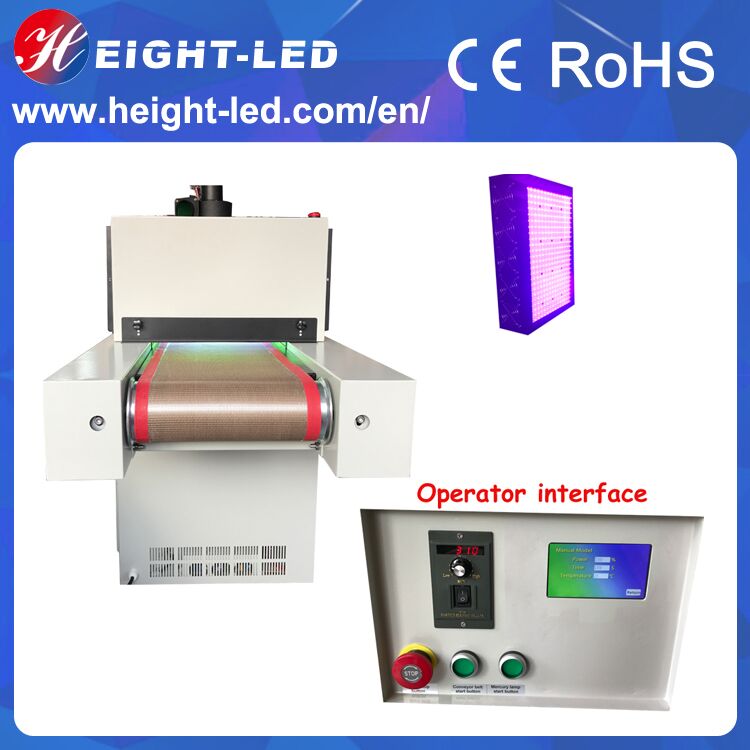

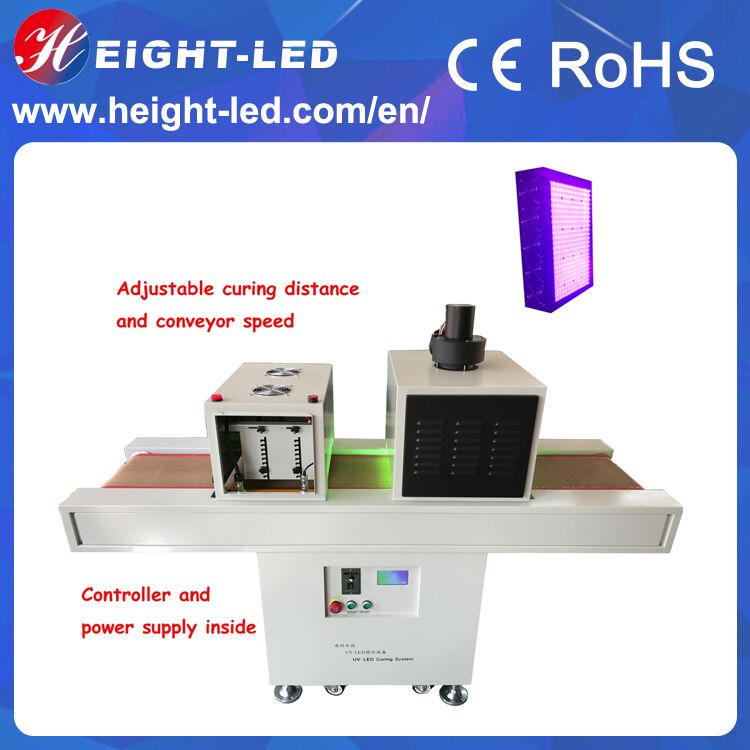

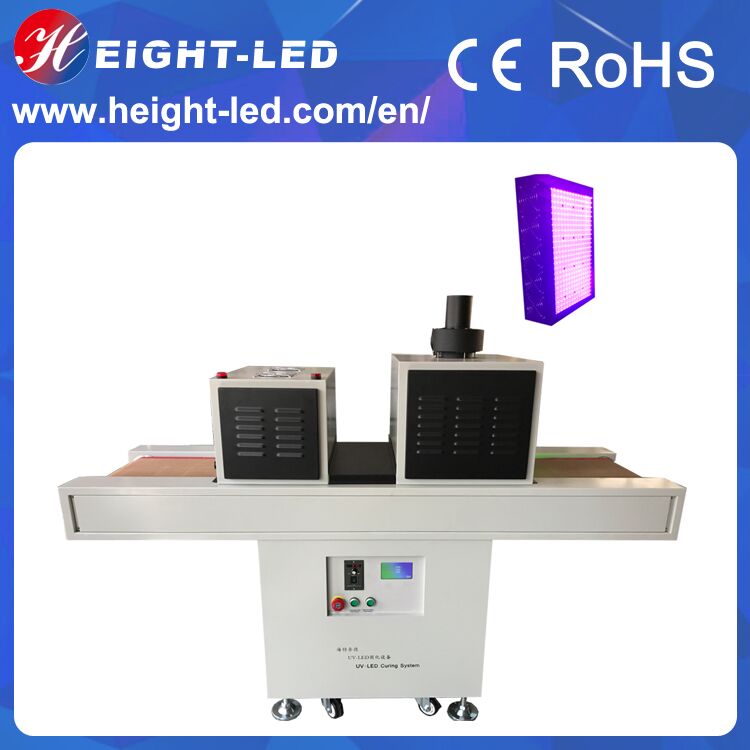

HTCS-II-FS300200-NL is a high-performance UVLED  curing system, the system includes the controller, UVLED irradiation

head MERCURY lamp and cable. UVLED head with imported high-intensity UV LED integrated UV spectral wavelength of

365nm, 385nm, 395nm, 405nm, the use of forced air cooling, the effective curing area of 300x200mm, support for external

signal input and trigger, can be equipped with semi-automatic or fully automated production line , and the mercury lamp

is for the surface treatment of uv adhesive.

1, luminous body (effective irradiation width): can be customized;

2, UV LED lights from the conveyor belt adjustable distance: 10-50mm;

3, UV LED lamp power density: 800mW / cm2; Mercury lamp: 1KW;

4, UV light intensity adjustable: 1% -100%;

5, Reflector: Aluminum reflector built-in imported reflective aluminum, high reflection efficiency, long service life;

6, the conveyor belt width: 300mm;

7, conveyor belt material: Teflon mesh belt or stainless steel mesh for optional;

8, Conveyor speed: 1-10 meters Promise adjustable;

9, LED lamp beads that is bright, without preheating, immediately begin curing work;

10, roller: surface knurling, to ensure smooth delivery;

11, the whole cooling method: air-cooled;

12, machine material: sheet metal;

13, machine appearance: white spray computer

14, the whole specification: 1500L * 580W * 100Hmm;

15, power wiring: 220VAC 50HZ;
